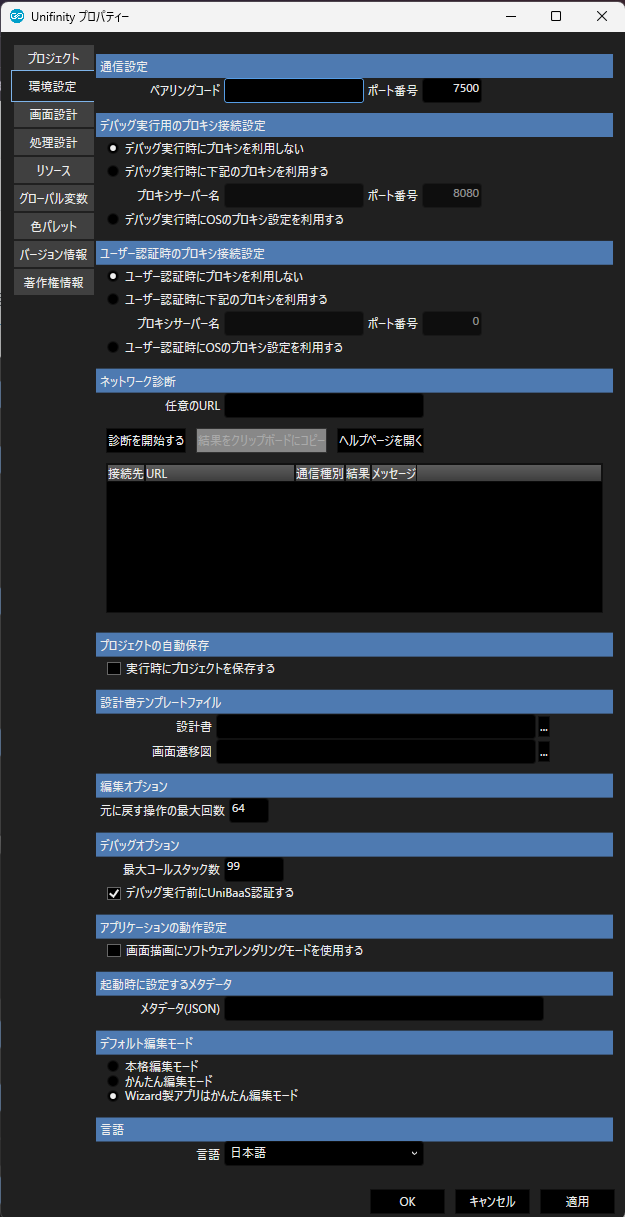

The “Preferences” tab lets you configure settings for using Unifinity Studio, including communication and pairing settings.

Communication Settings

Configure settings for the real-time preview feature.

Proxy Connection Settings

Configure the proxy used by Unifinity Studio for network communication. These settings apply to application communication during debugging in Unifinity Studio, real-time preview communication, and UniBaaS authentication.

Proxy Settings for Debugging

Configure the proxy used by the application for network communication during debugging.

Proxy Server Name
Enter the name of the proxy server.
Default: Blank
Allowed characters: ASCII letters

Port Number
Enter the port number of the proxy server.
Default: 8080
Allowed range: 1–65535

Proxy Settings for User Authentication

Configure the proxy used for user authentication during debugging when “Authenticate with UniBaaS Before Debugging” is selected.

Proxy Server Name
Enter the name of the proxy server.
Default: Blank
Allowed characters: ASCII letters

Port Number
Enter the port number of the proxy server.
Default: 8080
Allowed range: 1–65535

Note: Proxy Connection Limitations

• Only HTTP proxies are supported. Proxies that require authentication are not supported.
• If the proxy hostname is blank, the operating system’s proxy settings are used. Proxies that require authentication are still not supported.
• Proxy settings configured through Active Directory are not supported.
• If the proxy server name is blank and no proxy is configured in the operating system, communication takes place without a proxy.

Network Diagnostics

Run network diagnostics. For details, see “9. Network Diagnostics.”

Project Autosave

Configure automatic project saving.

Design Document Template Files

Configure the template files used to automatically generate design documents and screen transition diagrams. Prepare the template files in advance and specify their paths.

About Template Files

Templates use Excel files. Define the document’s layout and place keywords where you want information to appear.

For available keywords, see “Design Document Templates” in Formatting Rules.

Sample Template Files

Sample template files are provided with the Unifinity Studio installer.

Editing Options

Configure settings for editing operations.

Maximum Undo History

Set the maximum number of operations recorded for undo. Increasing this value increases Unifinity Studio’s memory usage.

Default: 64
Allowed range: -2147483648–2147483647

Debugging Options

Configure settings for debugging.

Maximum Call Stack Count

Set the maximum call stack count at which debugging stops. If the call stack count (number of loop iterations) exceeds this limit during debugging, a warning appears and debugging stops.

Default: 99
Allowed range: 1–99999

Authenticate with UniBaaS Before Debugging

Specify whether to authenticate with UniBaaS before debugging.

Select this checkbox to test logic that requires UniBaaS authentication, such as “2401_UniBaaS/Download File,” during debugging.

Application Behavior Settings

Configure settings for application behavior.

Use Software Rendering for Screen Display

With certain CPU and GPU combinations, the Unifinity Studio interface may not refresh correctly. Selecting this checkbox allows the interface to render correctly, although rendering responsiveness may decrease.

To force this setting on, launch Unifinity Studio from the command line with the -c software_rendering option.

To force this setting off, launch Unifinity Studio with the -c hardware_rendering option.

Push Notification Metadata to Set at Startup

When debugging starts, simulate receiving the specified metadata through a push notification.

Default Editing Mode

Set the editing mode used when opening a project.

Language

Configure the display language.
