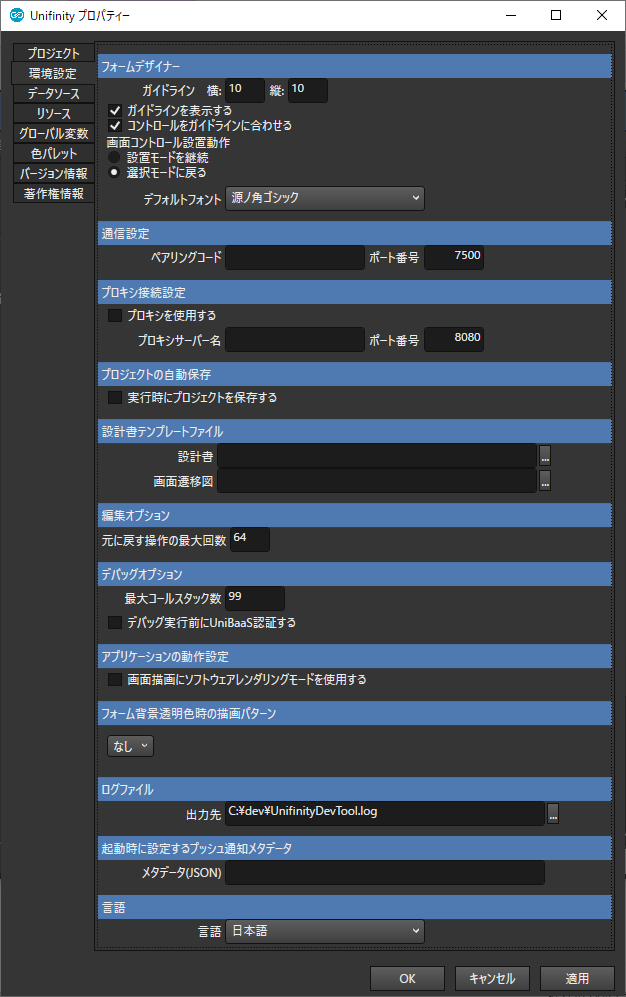

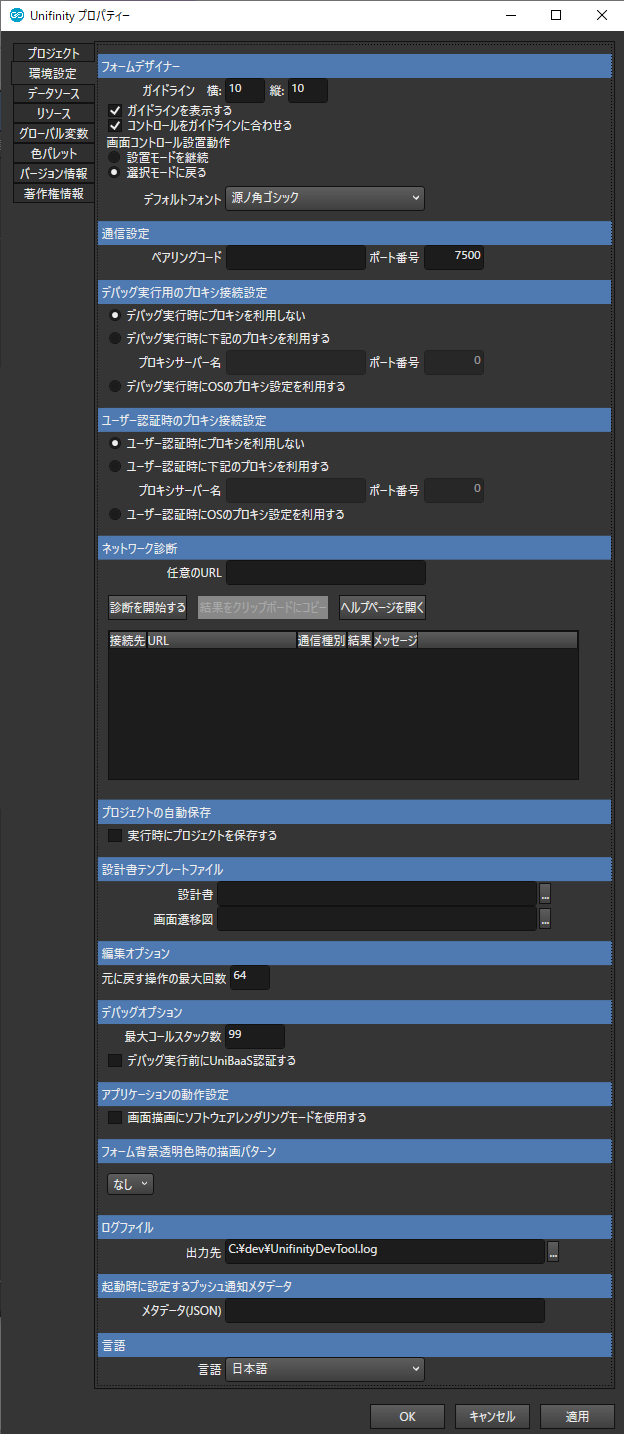

guideline

You can set the spacing of auxiliary lines and auxiliary points, which serve as indicators when placing controls on the screen.

Default value: width 10, height 10

Guidelines.
Show

You can set whether or not to display guidelines.

Controls.
Guidelines.
connect

If checked, drag-and-drop controls will fit the guidelines you set when repositioning or resizing them.

By default, controls are resized and moved in 10-point increments.

Screen Control
Installation action

When designing a screen, you can configure how the controls are installed.

Continue installation mode
Each time you click on the work area after selecting it in the control bar
control is placed.

Return to selection mode
After making a selection in the control bar, click on the work area,
The control is placed, but returns to selection mode.

default font

Select the initial font that will be set when the control is installed.

pairing code

You can set a pairing code when using the real-time preview function.

Default value: blank
Settable characters: Half-width alphabetical characters

port number

You can set the port number when using the real-time preview function.

Default value: 7500
Setting range: 1025 to 65535

Use Proxy

Check this box if a proxy connection is required.

proxy server name

You can enter the name of the server to connect to.
Default value: blank
Character set: Half-width alphanumeric characters including symbols

port number

You can enter the port number to connect to.
Default value: 8080
Setting range: 1 to 65535

Save the project at runtime

When you start a debug run, the project you are editing is
Check the box to save automatically.

design specifications

Specify the path to the design document template file.

Screen Transition Diagram

Specify the path to the screen transition diagram template file.

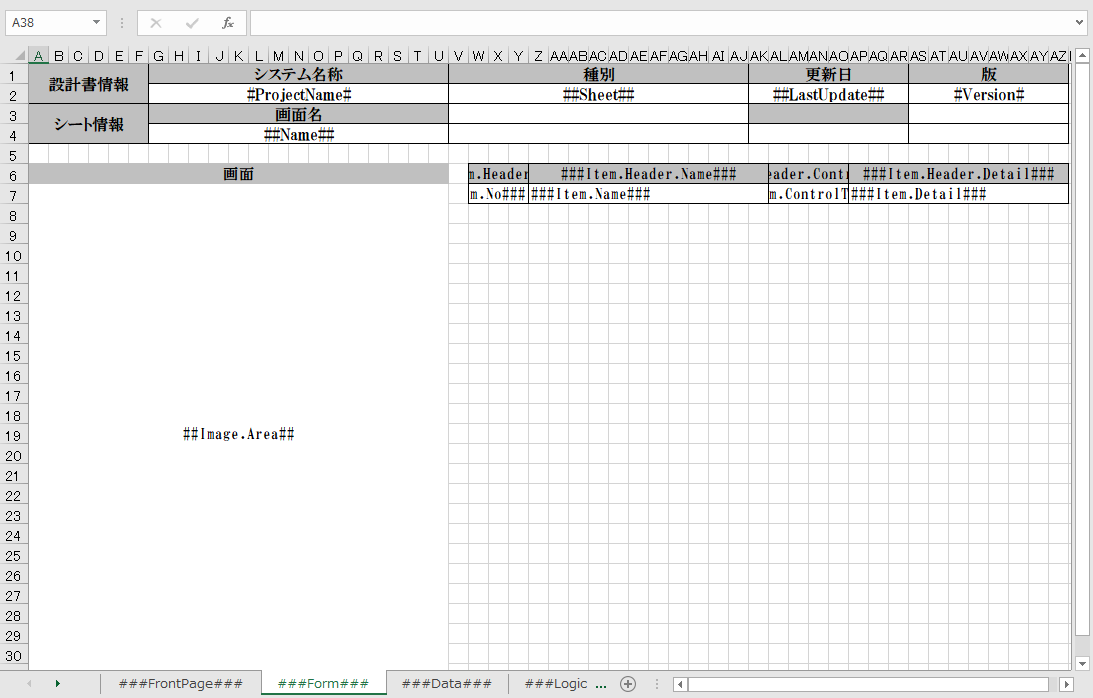

Design document template file

DesignDocumentTemplate.xlsx

DesignDocumentTemplateAll.xlsx

Screen transition diagram template file

ScreenTransitionDiagramTemplate.xlsx

Undo operation.
Maximum number of times to record

You can set the maximum number of undo operations to be recorded. If you make it big...
Unifinity Studio will consume more memory when used.

Default value: 64
Setting range: -2147483648 to 2147483647

Maximum call stack

You can set the maximum number of call stacks to stop debug execution.
Maximum number of call stacks (loops processed) during debugging run
If over, a warning is displayed and debug execution stops.

Default value: 99
Setting range: 1 to 999999

UniBaaS authentication before debugging run

Specifies whether or not UniBaaS authentication is performed when debugging runs are performed.

If checked, the debugging run will show "2401_UniBaaS/File DownloadThis will allow you to check the behavior of logic that requires authentication to UniBaaS, such as ".

Use software rendering mode for screen rendering

Unifinity Studio screens may not update properly depending on the CPU and GPU combination. Checking this box reduces the screen rendering response, but allows the screen to be rendered normally.

You can force the check by starting Unifinity Studio with the "-c software_rendering" option on the command line.

You can force it to be unchecked by starting Unifinity Studio with the "-c hardware_rendering" option.

output destination

Sets the path to the file that outputs the log.

Metadata (JSON)

You can specify metadata in JSON format. The specified content is [*].2003_push notification/metadata acquisition] logic can be used to obtain this information.

Language

You can set the display language. Supported languages are Japanese and English (U.S.). Switching the display language will take effect after restarting Unifinity Studio.
