This can be set for the entire Unifinity Application Player.

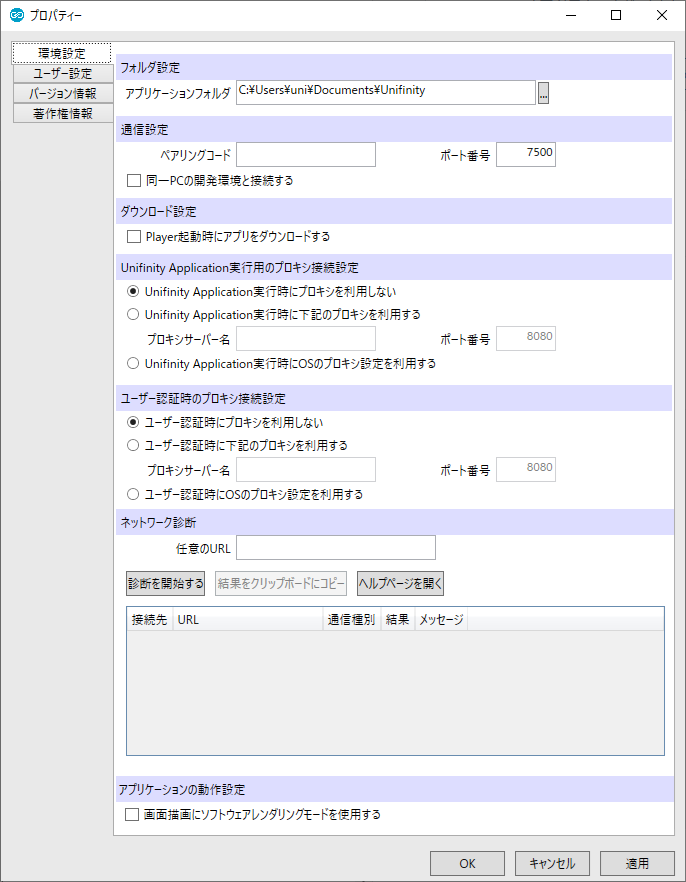

For Windows

In the Windows version, this is done in [Settings] in the TOP menu.

Folder Settings

This is the folder setting used by the Unifinity Application Player.

(data) item	Description.
application folder	Specify a folder where Unifinity Application Player stores application files. Do not delete the folder specified here. Also, do not create a project in Unifinity Studio in this folder.

Communication Settings

This is the setting for using the real-time preview function.

(data) item

Description.

pairing code

Specify the same value as the pairing code set in Unifinity Studio to be connected.

Default value: blank
Settable characters: Half-width alphabetical characters

port number

Specify the same value as the port number set in Unifinity Studio to be connected.

Default value: 7500
Setting range: 1025 to 65535

Connect to the development environment on the same PC

Check this box when connecting to Unifinity Studio running on the same PC.

Download Settings

This is the setting for downloading apps from UniBaaS with the Unifinity Application Player.

(data) item	Description.
Player application at startup. Download	When starting the Unifinity Application Player, check the box to automatically download the latest version of the app from UniBaaS and update the app.

Proxy connection settings for Unifinity Application execution

This is the proxy setting that the Unifinity application uses to communicate.

(data) item

Description.

Unifinity Application
proxy at runtime.
Not used

Select this option if your Unifinity application does not require a proxy for communication.

Unifinity Application
At runtime, the following
Use a proxy

Select this option if your Unifinity application requires a proxy with the specified proxy server name and port number for communication.

proxy server name
You can enter the name of the server to connect to.
Default value: blank
Settable characters: Half-width alphabetical characters

port number
You can enter the port number to connect to.
Default value: 8080
Setting range: 1 to 65535

Unifinity Application
OS proxy at runtime
Use settings

Select this option if your Unifinity application requires OS proxy settings for communication.

Proxy connection settings for user authentication

This is the proxy setting used for user authentication for the Unifinity Application Player.

(data) item

Description.

During user authentication
Do not use proxies

Select this option if you do not require a proxy when authenticating users for the Unifinity Application Player.

During user authentication
Use the following proxies

Select this option if you require a proxy with the specified proxy server name and port number for user authentication of the Unifinity Application Player.

proxy server name
You can enter the name of the server to connect to.
Default value: blank
Settable characters: Half-width alphabetical characters

port number
You can enter the port number to connect to.
Default value: 8080
Setting range: 1 to 65535

During user authentication
Use OS proxy settings

Select this option if you require OS proxy settings for user authentication for the Unifinity Application Player.

ReferenceRestrictions on Proxy Connections

Only HTTP Proxy is supported. Authenticated proxies are not supported.

If the host name in the proxy settings is left blank, communication is performed using the proxy information set by the OS. Again, authenticated proxies are not supported.

Proxy information set by Active Directory is not supported.

If the proxy server name is blank and no proxy information is set in the OS, communication is performed without a proxy.

Application behavior settings

These are settings related to the operation of the application.

(data) item

Description.

Use software rendering mode for screen rendering

Depending on the combination of CPU and GPU, the Unifinity Application Player screen may not update properly. Checking this box reduces the screen rendering response, but allows the screen to be rendered normally.

You can force the check by starting the Unifinity Application Player with the "-c software_rendering" option on the command line.

You can force it to be unchecked by starting the Unifinity Application Player with the "-c hardware_rendering" option.

logfile

This is a setting related to the Unifinity Application Player's operation log.

(data) item	Description.
output destination	You can configure the log output destination.

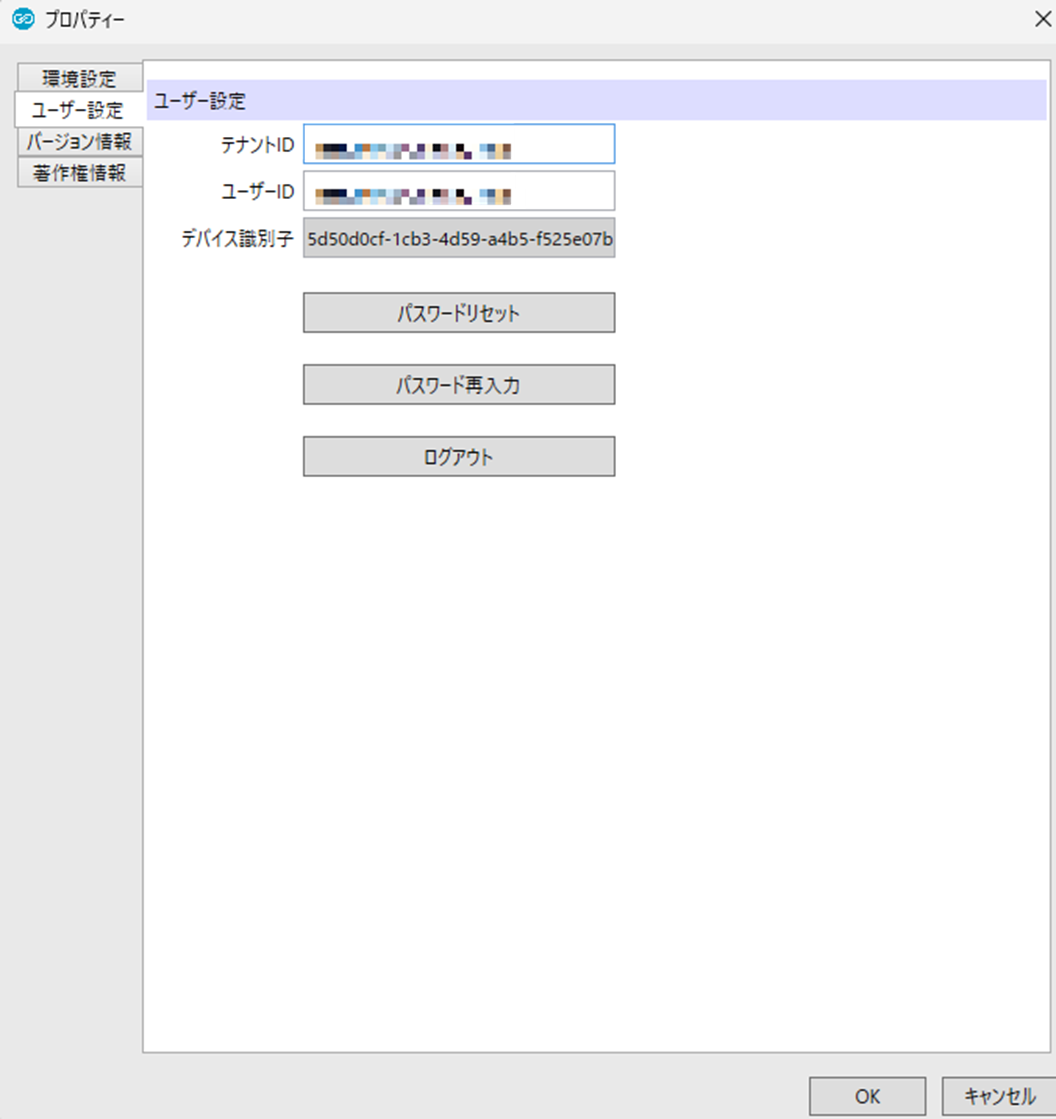

User Preferences

Settings related to terminal authentication and UniBaaS authentication.

(data) item

Description.

username
(computer) password
corporate ID

You can enter the information required to authenticate the device. For more information on terminal authentication, see "Installation" in the "Installation" section.5. terminal authenticationSee "The following is a brief description of the newest version of the product.

password reset

Reset the password for UniBaaS authentication. For more information on password reset, see "Using UniBaaS" in the "Using UniBaaS" section.9. what to do when you forget your passwordSee "The following is a brief description of the newest version of the product.

Clear user settings

Clear user settings (user ID, password, and company ID).

When clicked, a confirmation message screen will appear, and click [Yes] if you are satisfied with the clearing.

Once the user settings have been cleared, you will be returned to the launcher screen.

Version Information

Check the version of Unifinity Application Player and Terms of Use, etc.

(data) item	Description.
Version	Version of Unifinity Application Player.
Send anonymized statistical information to Unfinity for product improvement	If checked, anonymized information will be sent to Unfinity for product improvement.
Terms of Use	View Terms of Use.
Privacy Policy	View our privacy policy in your browser.

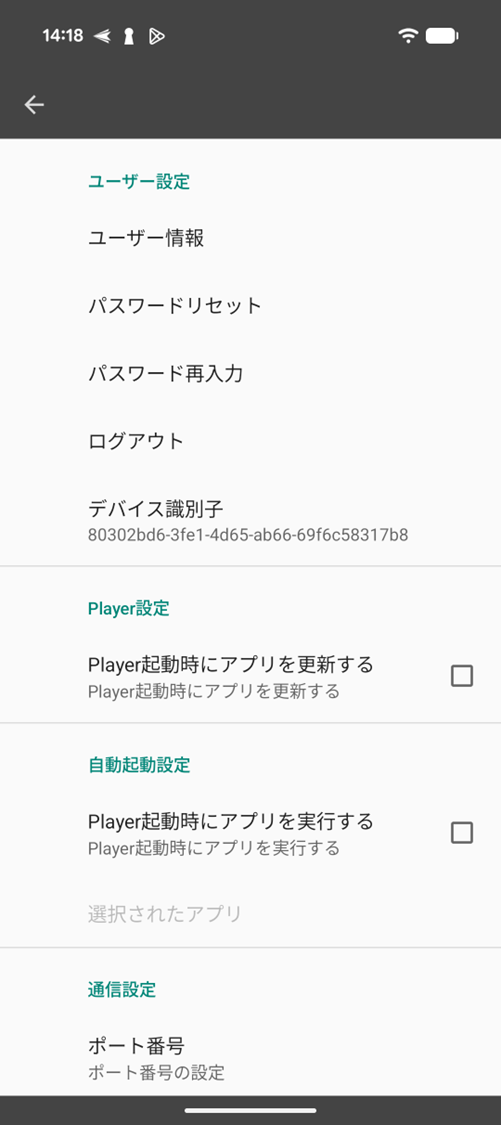

For Android

In the Android version, the same items as in the "Preferences" tab are set in the "Settings" menu.

(data) item	Description.
User Preferences	Settings related to terminal authentication and UniBaaS authentication. This is the same as the "User Settings" in the Windows version.
password reset	Reset the password for UniBaaS authentication. This is the same as the "Password Reset" in the Windows version.
Clear user settings	Clear user settings (user ID, password, and company ID). It is the same as "Clear User Settings" in the Windows version.
device identifier	The device identifier of the terminal to be registered during UniBaaS authentication. Tap to copy the device identifier to the clipboard.
Refresh the application when Player is launched.	Select to automatically download the latest version of the app from UniBaaS and update the app when the Unifinity Application Player is launched.
Run Player at OS startup	[Deprecated Unifinity automatically when the device is turned on Select this option to start the Application Player.
Run the application when Player starts up.	Select to automatically launch the Unifinity application when the Unifinity Application Player is launched.
Selected Apps	Specify the Unifinity application to be launched automatically when the Unifinity Application Player is launched.
port number	This is the port number setting when using the real-time preview function. It is the same as "Communication Settings" = "Port Number" in the Windows version.
pairing code	This is the setting of the pairing code when using the real-time preview function. It is the same as "Communication Settings" = "Pairing Code" in the Windows version.
Use a proxy	Select this option if Unifinity Application Player requires a proxy with the specified proxy server name and port number for communication.
proxy server name	You can enter the name of the server to connect to. Default value: blank Settable characters: Half-width alphanumeric characters including symbols
proxy port number	You can enter the port number to connect to. Default value: 8080 Setting range: 1 to 65535
Send statistics	If checked, anonymized information will be sent to Unfinity for product improvement.
Terms of Use	View Terms of Use.
Privacy Policy	View our privacy policy in your browser.

[Attention.

Due to OS limitations, the setting "Run Player on OS startup" does not work on Android 10 or later, and is therefore a deprecated feature.

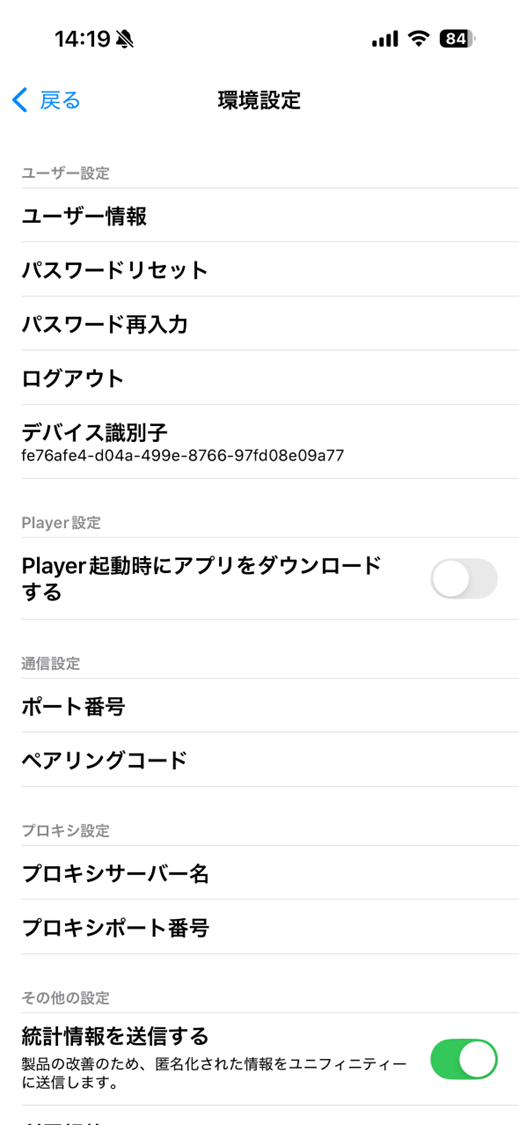

For iOS

In the iOS version, the same items as in the "Preferences" tab are set in the "Settings" menu.

(data) item	Description.
User Preferences	Settings related to terminal authentication and UniBaaS authentication. This is the same as the "User Settings" in the Windows version.
password reset	Reset the password for UniBaaS authentication. This is the same as the "Password Reset" in the Windows version.
Clear user settings	Clear user settings (user ID, password, and company ID). It is the same as "Clear User Settings" in the Windows version.
device identifier	The device identifier of the terminal to be registered during UniBaaS authentication. Tap to copy the device identifier to the clipboard.
Player application at startup. Download	Select to automatically download the latest version of the app from UniBaaS and update the app when the Unifinity Application Player is launched.
port number	This is the port number setting when using the real-time preview function. It is the same as "Communication Settings" = "Port Number" in the Windows version.
pairing code	This is the setting of the pairing code when using the real-time preview function. It is the same as "Communication Settings" = "Pairing Code" in the Windows version.
proxy server name	You can enter the name of the server to connect to. Default value: blank Character set: Half-width alphanumeric characters including symbols
proxy port number	You can enter the port number to connect to. Default value: 8080 Setting range: 1 to 65535
Send statistics	If the switch is turned on, anonymized information is sent to Unifinity for product improvement.
Terms of Use	Display the Terms of Use.
Privacy Policy	View our privacy policy in your browser.
