This section describes the TOP menu at the top of the screen.
file
item name | Description. | shortcut key |
---|---|---|
Create New Project |
Create a new project. [When the "Create Project Folder" checkbox is checked, a folder with the same name as the file name will be created, and the project file will be created under it. |
- |
Open Project |
Open an existing project. |
- |
Close Project |
Closes the current project. |
|
Recently used |
Up to 10 most recently used projects are displayed in order of newest to oldest. |
- |
selected file |
Save only the file currently being edited. |
Ctrl+S |
Save All |
Save all modified files. |
Ctrl+Shift+S |
Name on project |
Save the project you are editing with a different name. |
- |
Generate Design Documents |
Generates a design document for the currently open project. |
- |
Generate screen transition diagrams |
Generates a screen transition diagram for the currently open project. |
- |
end |
Exit Unifinity Studio. |
- |
ReferenceTo generate design documents and screen transition diagrams
A template file must be created in advance and registered in Unifinity Studio. For template files, see "Checking/Modifying Properties" in3. the Preferences tab (Unifinity Studio)See "The following is a brief description of the newest version of the product.
editing
item name | Description. | shortcut key |
---|---|---|
Search |
Performs "Text Search" and "Find Usages". |
Ctrl+F (Text Search) Ctrl+Shift+F (Find Usages) |
return to the point (of a discussion) |
Returns the operation to one previous state. |
Ctrl+Z |
redoing |
Redo the same operation. |
Ctrl+Y |
clipping |
Copies the selection to the clipboard. |
Ctrl+X |
copy |
Copies the selection to the clipboard. |
Ctrl+C |
paste |
Paste the clipboard contents. |
Ctrl+V |
deletion |
Deletes the selected content. |
Delete |
order |
Changes the overlap order of selected controls. |
- |
deployment |
Aligns multiple selected controls with the specified alignment. |
- |
Size |
Aligns the size of multiple selected controls with the specified content. |
- |
grouping |
Group multiple selected controls. |
- |
ungrouping |
Ungroups the selected group. |
- |
About the search function

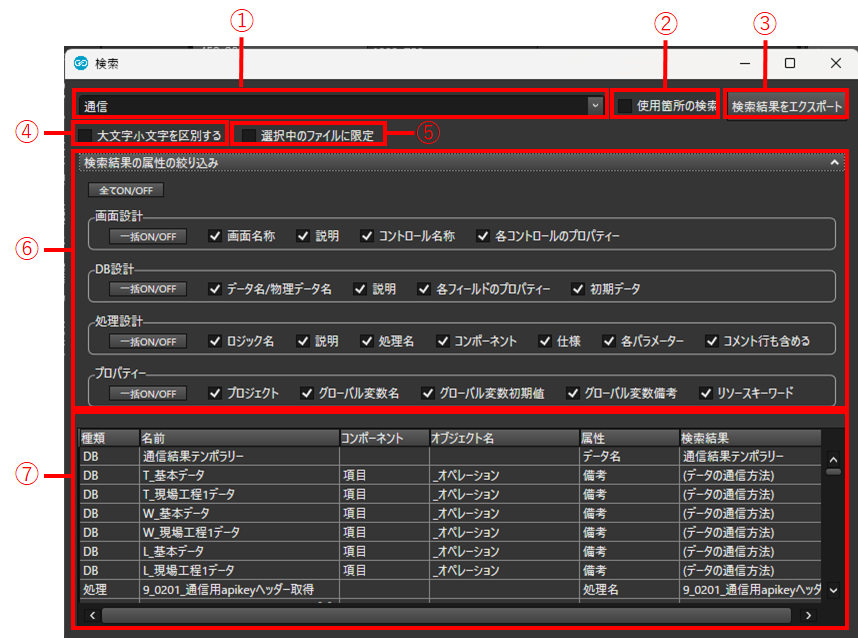

When you perform a "text search" or "search for usages", a "search window" will be displayed.
① |
Enter your search keyword. Up to 30 entries will be recorded as history. |
② |
If ON, sets the search mode to "Search for usages". |
③ |
Export search results. You can select the export method from the following.
|
④ |
If ON, alphabetical characters in search keywords are case-sensitive. When set to OFF, no distinction is made between uppercase and lowercase letters. |
⑤ | When ON, limits search results to only those files currently selected in Unifinity Studio. |
⑥ |
It is initially collapsed. Click to expand. Refine search results by attributes that are ON. If you select by right-clicking the mouse, only the relevant part will be turned on, and the rest will be turned off. |
⑦ |
Display the search results in a list. Click on a search result to select the relevant section in Unifinity Studio. You can sort in ascending/descending order by clicking the header. You can also change the width. The headers are as below
|

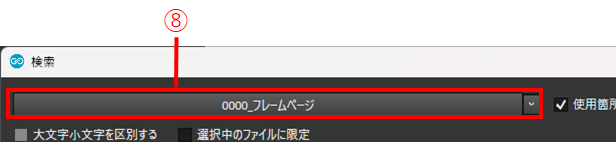

⑧ |
Displayed when you search using "Find Usages". Click to select the relevant location in Unifinity Studio. |
Text Search
After entering the keyword, press the Enter key to perform a search and display the results.
The search targets are the form, DB, logic, and each property of the components placed on them.
The results at the time the search is executed are displayed in the search results. If you change the name or properties in Unifinity Studio after searching, please search again.
Find Usages
Search for references to the selected object in Unifinity Studio. (Example: If you search for usages with a logic selected, the search results will display a button where the logic is set as the execution logic and the name of another process that calls the logic.)
The search targets are forms, logics, and each property of the components placed on them.
About search history
Up to 30 search results are recorded in the history. You can display and select the history from the pull-down on the right end of the text search field.
Searches for usage locations are saved in the history in the format "(Usage location) - Name".
Also, regarding the usage search history, only those that have been searched for in the project currently open in Unifinity Studio will be displayed as history.
If you want to delete a history, hover over the history and select Delete from the right-click menu.
plug-in (software)
item name | Description. | shortcut key |
---|---|---|
UniForm |
Generate applications by importing form files created in Excel. For more information, see "1. overview of UniFormPlease refer to the "See |
- |
property
Select [Properties] from the TOP menu to display the "Unifinity Properties" screen, where you can configure project-related settings and Unifinity Studio settings. For more information, see "Check/modify propertiesSee the "The following is a list of the most important factors that must be taken into account when making a purchase.
