To display the properties of a DB design file in the Properties area, select the DB name in the DB definition list.

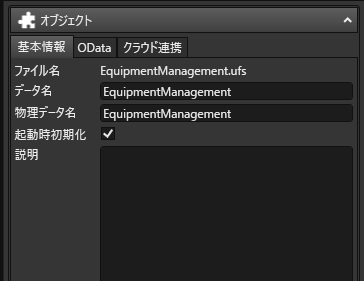

Contents of [Basic Information] tab
You can check and change the basic information in the DB design file.
The name of the DB design file is displayed. To change the file name, refer to "Basic Operation 《Unifinity Studio》".Operations in the Definition List Area Rename FileSee "The following is a brief description of the newest version of the product.
The name of the table to be created, which will appear as the DB name in the DB definition list. This name is also used when working with controls and processes (logic).
You can change the contents of the input fields.
The name of the table to be stored in SQLite.
You cannot use the same name as another table. There are also restrictions on the characters that can be used. For more information, see "Restrictions" in the "Restrictions" section.4. limitations specific to Unifinity StudioSee "The following is a brief description of the newest version of the product.
When checked, the table is initialized with the contents of the initial data when the Unifinity application is started.
When unchecked, it is not initialized.
Contents of [Description] tab
You can enter a description of the entire table selected in the DB definition list, as well as a description of the table as a whole. The entry will be replaced by the keyword "###DataNotes##" in the design document template when the design document is automatically output.

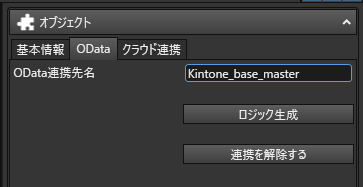

Contents of [OData] tab
It is displayed only if the database is linked to an external database (OData).
For more information, see "9. Linkage with external databases (OData)Please check the "About Us" page.

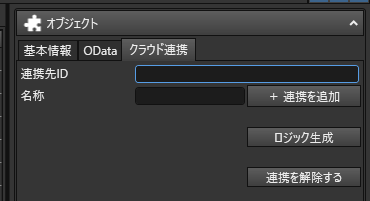

Contents of [Cloud Linkage] tab
Used to link to an external data base (cloud database).
For more information, see "8. Linkage with external databases (cloud databases)Please check the "About Us" page.
