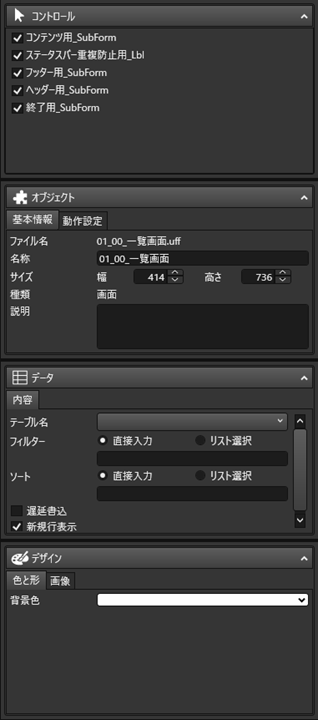

To display the properties of a screen design file in the properties area, select the screen name in the screen definition list.

Contents of the [Object] pane

This section describes the Object pane of the Properties Area. [The Object pane has three tabs: the Basic Information tab, the Behavior Settings tab, and the Description tab.

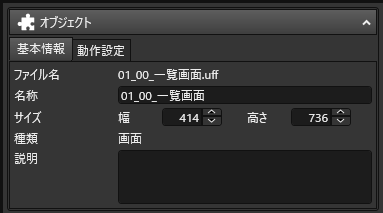

Contents of [Basic Information] tab

View and modify basic information in the screen design file.

item name	Description.
file-name	The name of the screen design file is displayed. How to rename a file, Basic Operation 《Unifinity Studio Edition》".7. operation of the definition list area Rename fileSee "The following is a brief description of the newest version of the product.
name	The name of the screen to be created, which will appear as the screen name in the screen definition list. You can also use this name when working with controls and processes (logic). Use. You can change the contents of the input fields.
Size	Screen width and height. You can enter values directly or click the spin button to change values.
type	"Screen" is displayed.
Description	You can enter a description or description of the entire screen selected in the screen definition list.

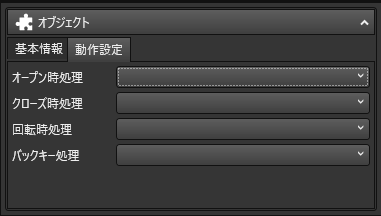

Contents of [Action Settings] tab

You can check and change the behavior of the screen display.

item name	Description
On open	Specifies the method to be executed when a form (screen) is opened. NOTE: If there is a subform that is linked to an open process using the "Control/Subform transition" logic, the open process linked to the subform will not be executed.
On close	Specify the method to be executed when the form (screen) is closed. NOTE: If there is a subform that is linked to an close process using the "Control/Subform transition" logic, the close process linked to the subform will not be executed.
On rotate	Specifies the process to be executed when the form (screen) is rotated. NOTE: Any [On rotate] method associated with the subform will not be executed.
On back key	Specifies the process to be executed when the back key is pressed. NOTE: Any [On back key] method associated with the subform will not be executed.

Attention Processing of Unifinity Application Player for Windows during rotation

The Windows version of the Unifinity Application Player can perform rotation processing by resizing the window, such as by maximizing the window or operating the resize grip.

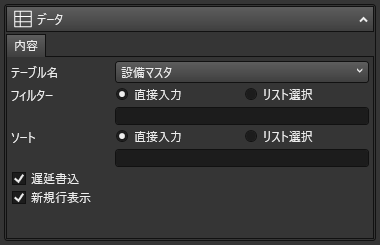

Contents of the [Data] pane

This section describes the Data pane of the Properties area. [The Data pane has a Contents tab that allows you to associate screens (forms) with tables and specify conditions for reading and writing tables.

item name	Description.
table name	Specify the table to be associated with the form. The contents registered in the DB definition list are displayed in the pull-down menu.
filter (esp. camera)	Specify the extraction conditions when loading tables. [When "Direct input" is selected: Enter the criteria in the input field below. [When "List Selection" is selected: Specify conditions in the "Item Name," "Condition," "Value," and "OR Group" columns.
sort	Specify the sort condition when loading tables. [When "Direct input" is selected: Enter the criteria in the input field below. [When "List Selection" is selected: Specify conditions in the "Item Name" and "Order" columns.
delayed writing	When checked, the logic component "Data Set/WriteDuring processing Write to the When unchecked, sequential writing is performed.
newline character (either or both of CR and LF depending on system)	When checked, a blank line is displayed on the bottom row of the table. When unchecked, blank lines are not displayed.

Contents of [Design] pane

This section describes the Design pane of the Properties area. [The Design pane contains three tabs for specifying the screen background design: the Colors and Shapes tab, the Images tab, and the Borders tab.

[Color and Shape tab contents

Specifies the background color of the screen. Click on the color area to display the color picker and select the color you wish to specify.

Contents of [Image] tab

Specifies when to place an image on the screen background.

item name

Description.

Standard Image

Image Deletion

[Click on "Standard Image" and specify an image file, and the image will be used as the background of the screen.
The image will be placed.

To stop placing images, click on "Delete Image".

Display side by side

Displays multiple images specified as standard images side by side.

Vertical Fit

The image specified as the standard image is displayed according to the aspect ratio of the screen.

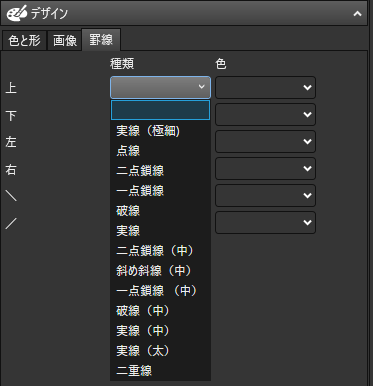

Contents of [Ruled Lines] tab

You can draw rules on buttons, labels, text, checks, and radio controls.

The Ruled tab appears only when the target control is selected.

item name	Description.
type	You can select the type of line.
variety	You can select the color of the line.
