kintone integration (5) : Retrieve a record

Learn how to create a mobile app in Unifinity that works with kintone.

In this article, we will show you how to retrieve kintone records using kintone's REST API.
In a previous post.User Authenticationwill be required, so please check accordingly.

You can download a sample project of the Unifinity kintone application used in the explanation below. We hope you will take advantage of it.
kintone: Record Retrieval Application
Unifinity: kintone record retrieval application

Overview of the application to be created

Create a mobile app that retrieves records from kintone and stores and displays them in Unifinity's DB.

Setting up kintone

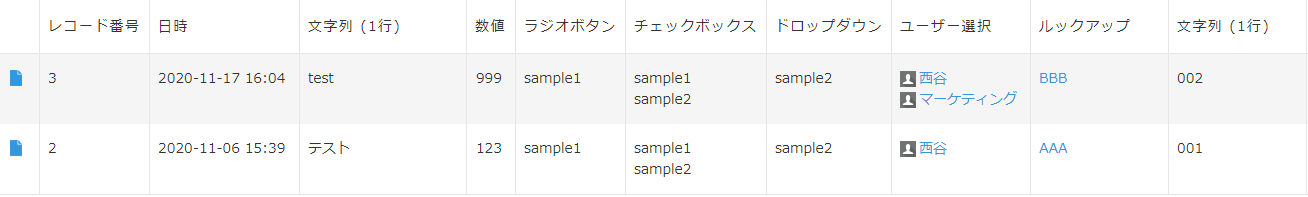

This time, please set up applications for date/time, strings, numbers, radio buttons, check boxes, drop-downs, user selection, and lookups (+ string of lookup results), and register about 2~3 records of data. Since lookups are used, please also set the application to which lookups will be applied.
These records are retrieved by the mobile application.

Other commonly used attachment DLs are described in another article.

In order to link, the kintone subdomain name, app ID, and field code for each field are required.

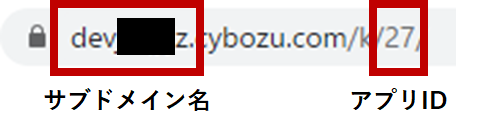

The subdomain name and app ID can be found in the following part of the URL when connecting to the app.

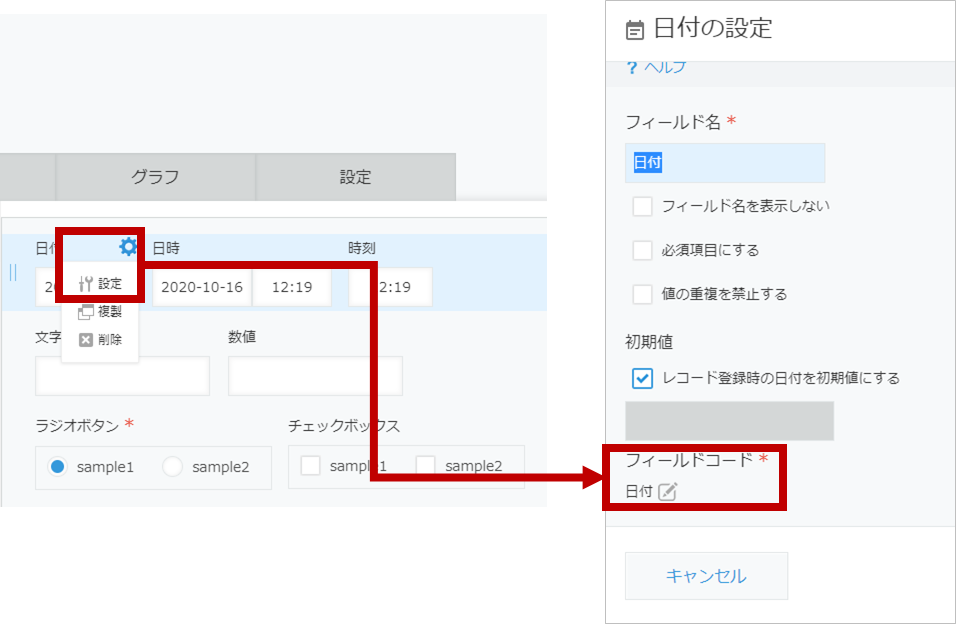

The field code for each field can be checked from the application's settings screen.

Unifinity collaboration settings

This section explains screen creation, DB creation, and process creation.
For basic Unifinity operation, click here.Tutorial Videosfor more information.

0. Preparation

In my previous article.User Authenticationin the application.

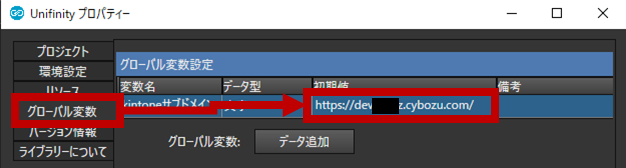

Also, set the global variable for the property to the subdomain name identified in the kintone configuration.

1. screen creation

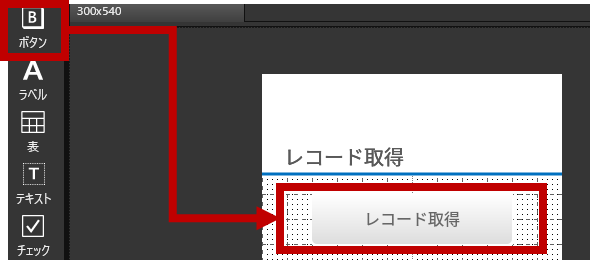

(1) Place a button to retrieve a kintone record.

(2) Create a screen that displays multiple records obtained. Unifinity offers two possible formats for displaying multiple records, tabular and list, and we will introduce both.
Since the tabular format is less flexible, we recommend the list format for improved readability.

(3) Table format

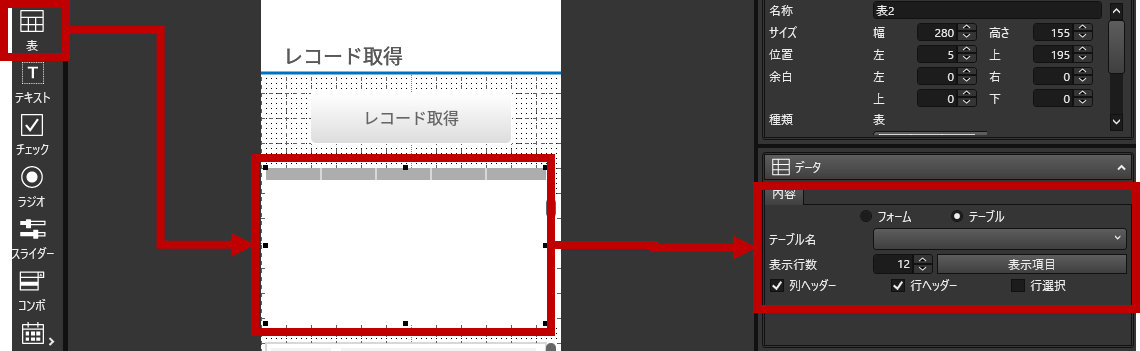

(3-1) Select the table object and place it in the screen. You can configure the detailed settings in the Data > Contents section, but since this configuration will be performed at the end, you can leave the default settings at this time.

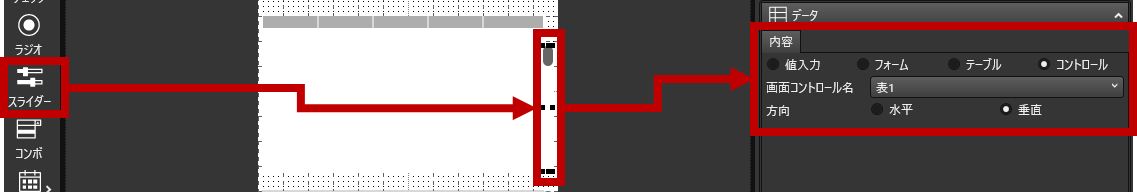

(3-2)Set up a slider linked to the table created above. After placing the slider, go to Data > Contents, select Controls, select the table you created for the screen control name, and set the direction to vertical.
This will allow the slider to scroll the table as well.

(4) List format

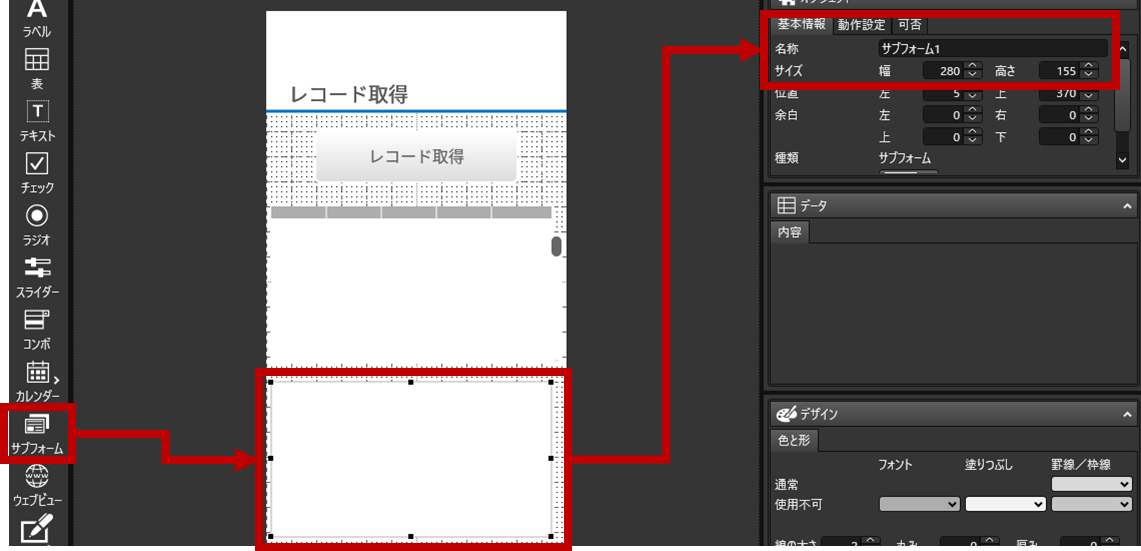

(4-1) Select a sub-form object and place it on the screen. Please check the width in Object Basic Information, as it will be used in (4-2).

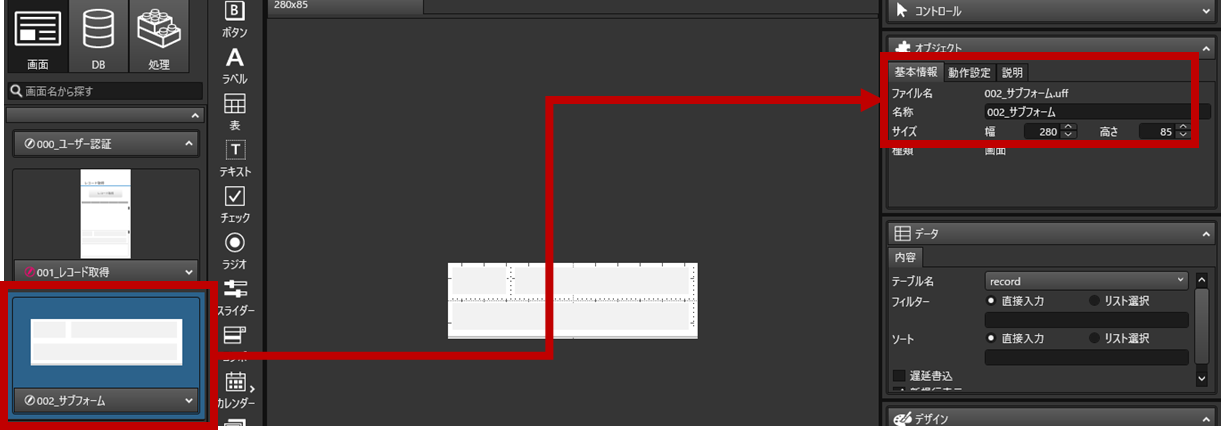

(4-2) Create a new screen to be displayed on the sub form, and match its size width with the width of the screen in (4-1). Set the height arbitrarily according to the number of items to be displayed.

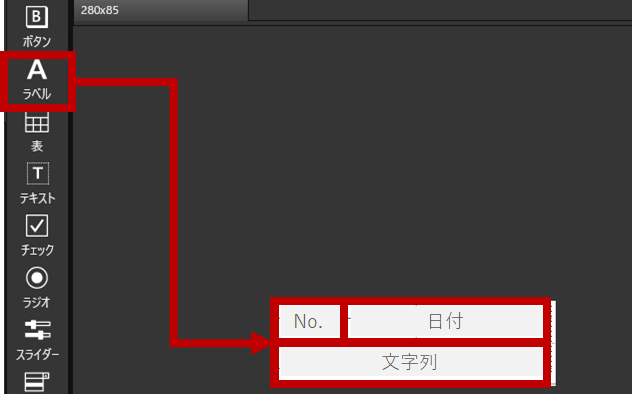

4-3) Place the number of labels you wish to display as a list on the screen created in (4-2).
In this case, there are three: Record No./Date/String.

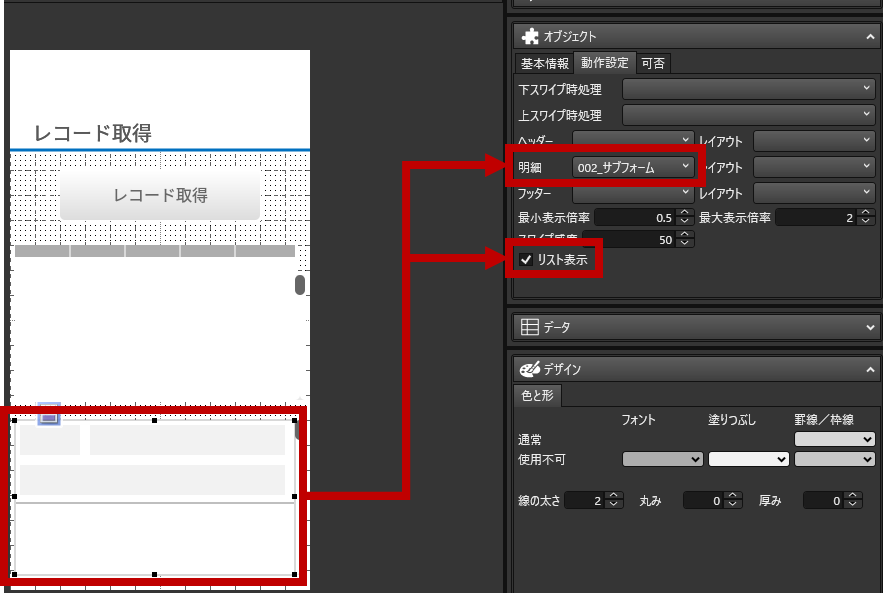

(4-4) Then, select the subform of the screen created in (4-1), select the screen from (4-2) in Object > Details, and check the List view.
(4-5) Set up a slider linked to the sub form created above. The settings here are the same as in (3-2).

The screen creation is now complete (there are some areas to be updated after setting up 2.3.)

2. creation of DB

Create a DB in Unifinity to store information on data retrieved from kintone.

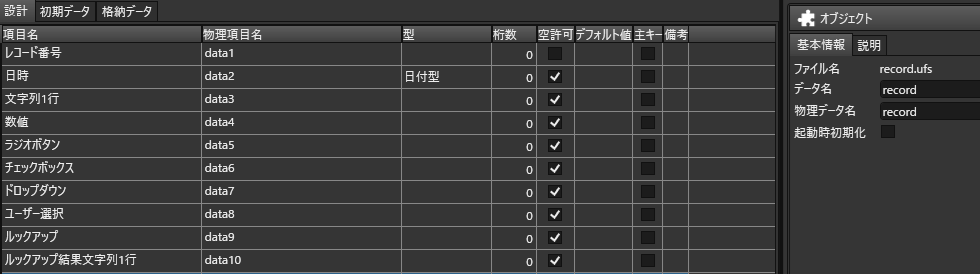

(1) Create a DB for storage.
After creating the data file, enter an easy-to-understand name for the item name and physical item name for the item you wish to retrieve from the kintone application. To obtain a date and time, select a date type for the type.
Also, check the Empty Permission checkbox for items where data may be empty.
*Please note that physical item names must be set using alphabet + numbers (must start with an alphabet).

DB creation is now complete.

3. process creation

Create an action when the data acquisition button created on the screen is pressed.
For each item, we will explain the process one by one.

(1) Subdomain name calling

(2) Calling user authentication information

(3) Request data acquisition to kintone

#6	."Database/DeleteDelete past kintone data stored in the DB created in 2.
#7	."String Functions/Concatenationand generate the RESTAPI URI (https://(subdomain name).cybozu.com/k/v1/records.json) as determined by KINTONE. This time, we concatenate the contents of #2, which invokes the subdomain name, with "/k/v1/records.json". For more information on kintone's RESTAPI, seethis way (direction close to the speaker or towards the speaker)for more information.

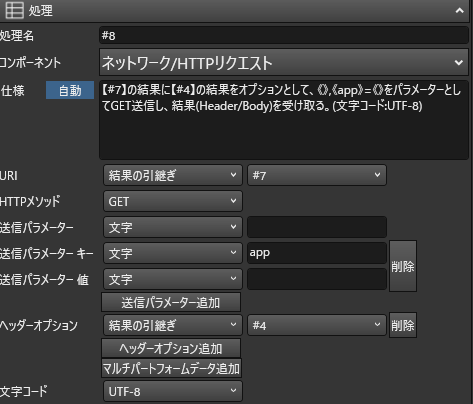

#8	."Network/HTTP requestto send data to kintone. Set each item as follows The value corresponding to *app is left blank, but please enter the appID of the app you wish to retrieve.

(4) Confirm the contents of acquired data

#10

."Dictionary/AcquisitionUse the "Key: Body" to obtain the key: Body.

#11

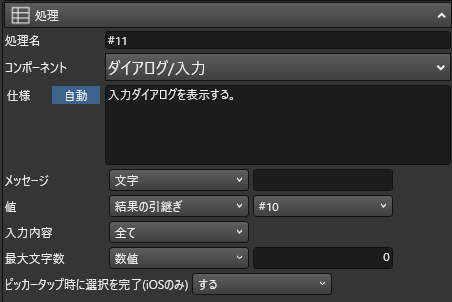

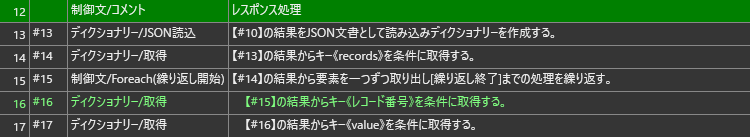

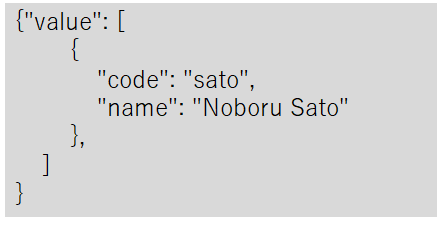

."Dialog/Input" as follows to display the results of #10. This is used as a confirmation when creating the application. When running in production, please check the disabled checkbox at the leftmost line of the processing line. The response obtained at this point should be used as the basis for subsequent processing,this way (direction close to the speaker or towards the speaker)It is recommended to put it in a JSON parser such as This one is a bit more difficult, so please contact us if you need help.

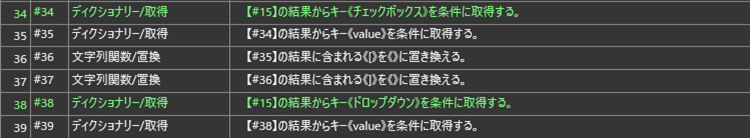

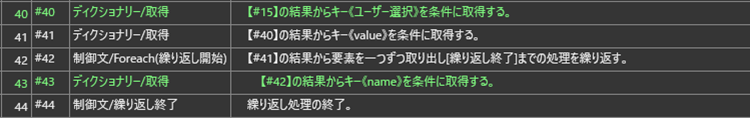

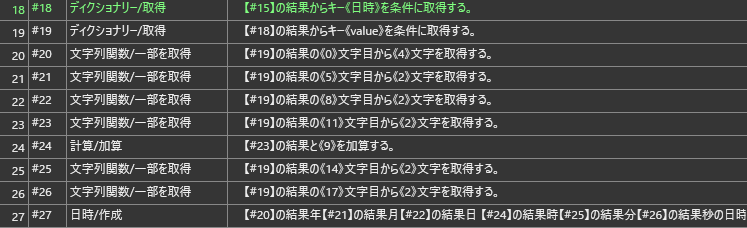

(5) Store kintone response in DB

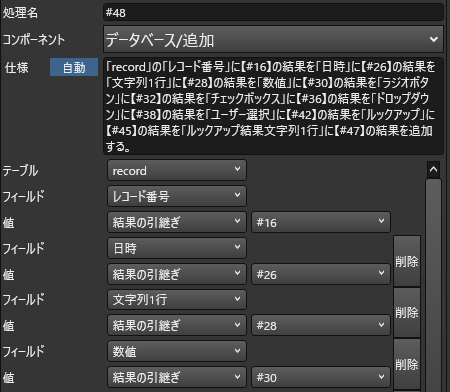

#49	."Database/AdditionAdd the data obtained from kintone to the DB created in 2. as follows using "1.
#50	."Control statement/repeat endUse "+" to terminate the process.

4. stringing

This time, we will link the screen to the database and processing.

(1) Linking the table on the screen to the database

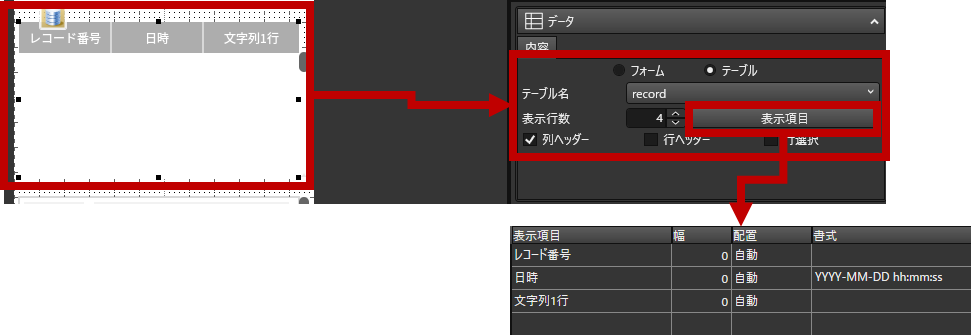

Select the table, then select Data Table of Contents. Enter the name of the table to be linked there, the number of rows to be displayed (4 in this case), and check only the column headers. Also, click on Display Items and set the database items to be displayed in the table (three in this case). When selecting the date and time, please enter a format such as "YYYYY-MM-DD hh:mm:ss" in the format.

(2) Connecting sub forms on the screen to the database

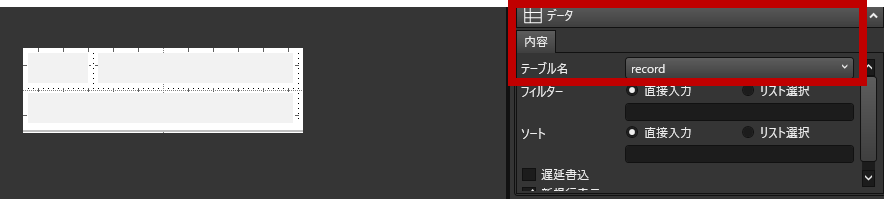

First, on the screen to which the sub form is to be transferred, with nothing selected (or click on the black area outside the screen), go to Data Contents and select the name of the table to be linked.

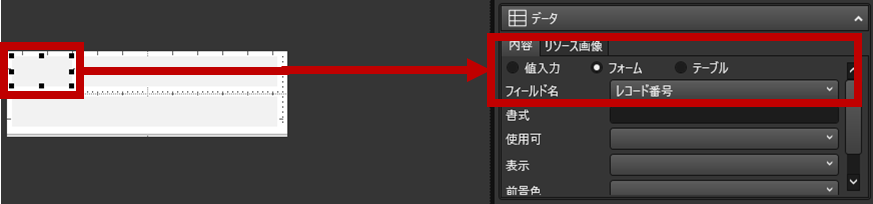

Then select each label, choose Data Contents then Form, and select the name of the field you want to display.

(3) Linking buttons and processes on the screen
Finally, tie the process created in step 3 to the Get Record button to complete the process.

In the next issue, we will show you how to create an application that registers a lookup field in KINTONE.

The kintone application and sample projects used in this explanation can be downloaded from the following links.

kintone: Record Retrieval Application
Unifinity: kintone record retrieval application
