This section describes how to set up a satellite office as an IdP (Identity Provider) for Unifinity.
procedure
1. register for external system integration

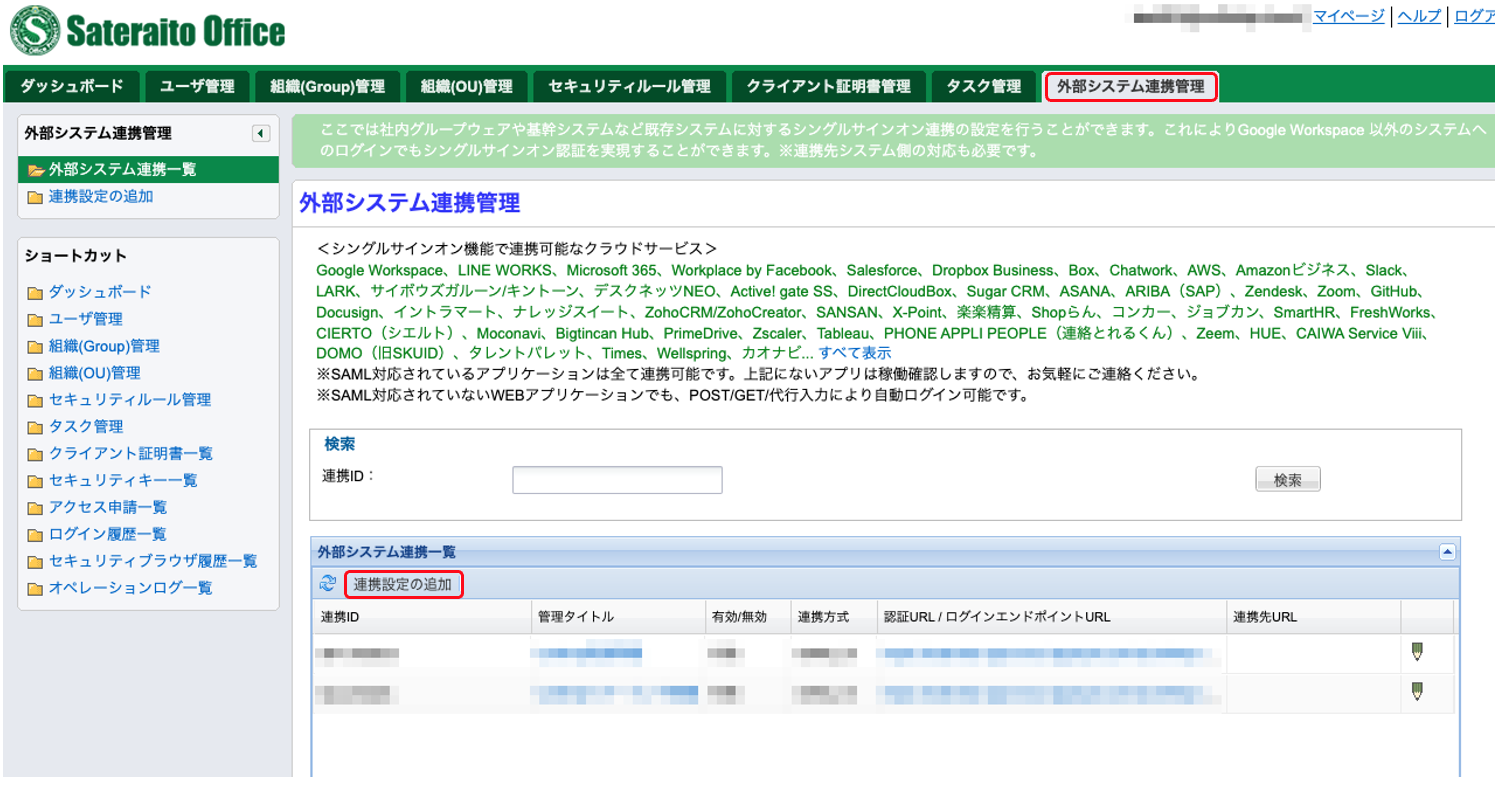

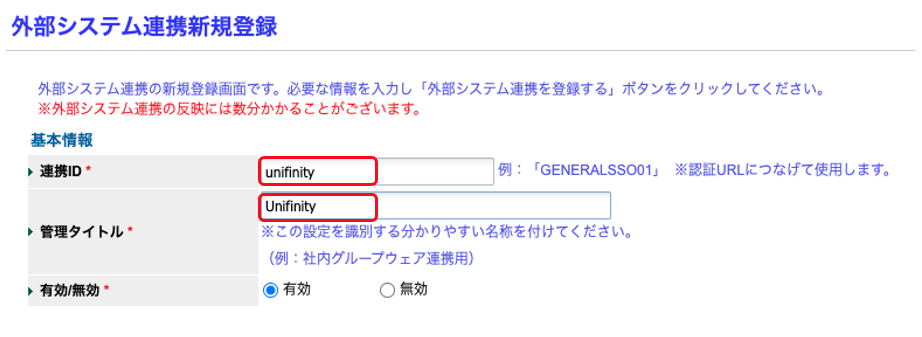

On the "External System Linkage Settings" tab of the Satellite Office Administration page, click "Add Linkage Settings".
Specify "unifinity" for the linkage ID and any name for the management title.

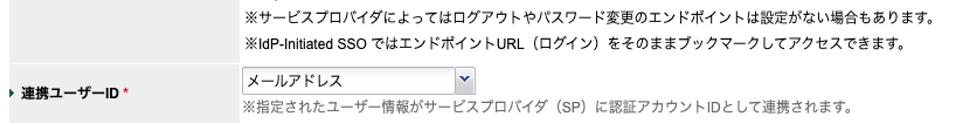

Please select an email address for the linked user ID.

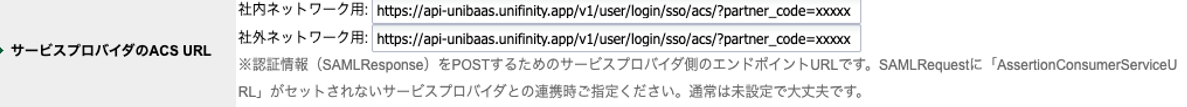

The ACS URL for the service provider should be the ACS URL on the UniBaaS single sign-on configuration screen for both the internal and external networks.

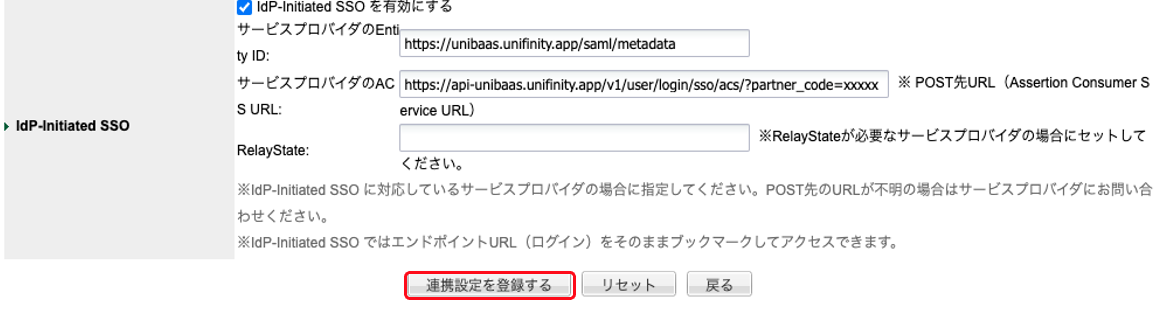

When enabling IdP-Initiated SSO, please set the following
- Check to enable IdP-Initiated SSO
- Entity ID of the service provider:. Entity ID on the UniBaaS single sign-on configuration screen
- ACS URL of service provider:. ACS URL for UniBaaS single sign-on configuration screen
Click on "Register Linkage Settings.
2. update external system integration

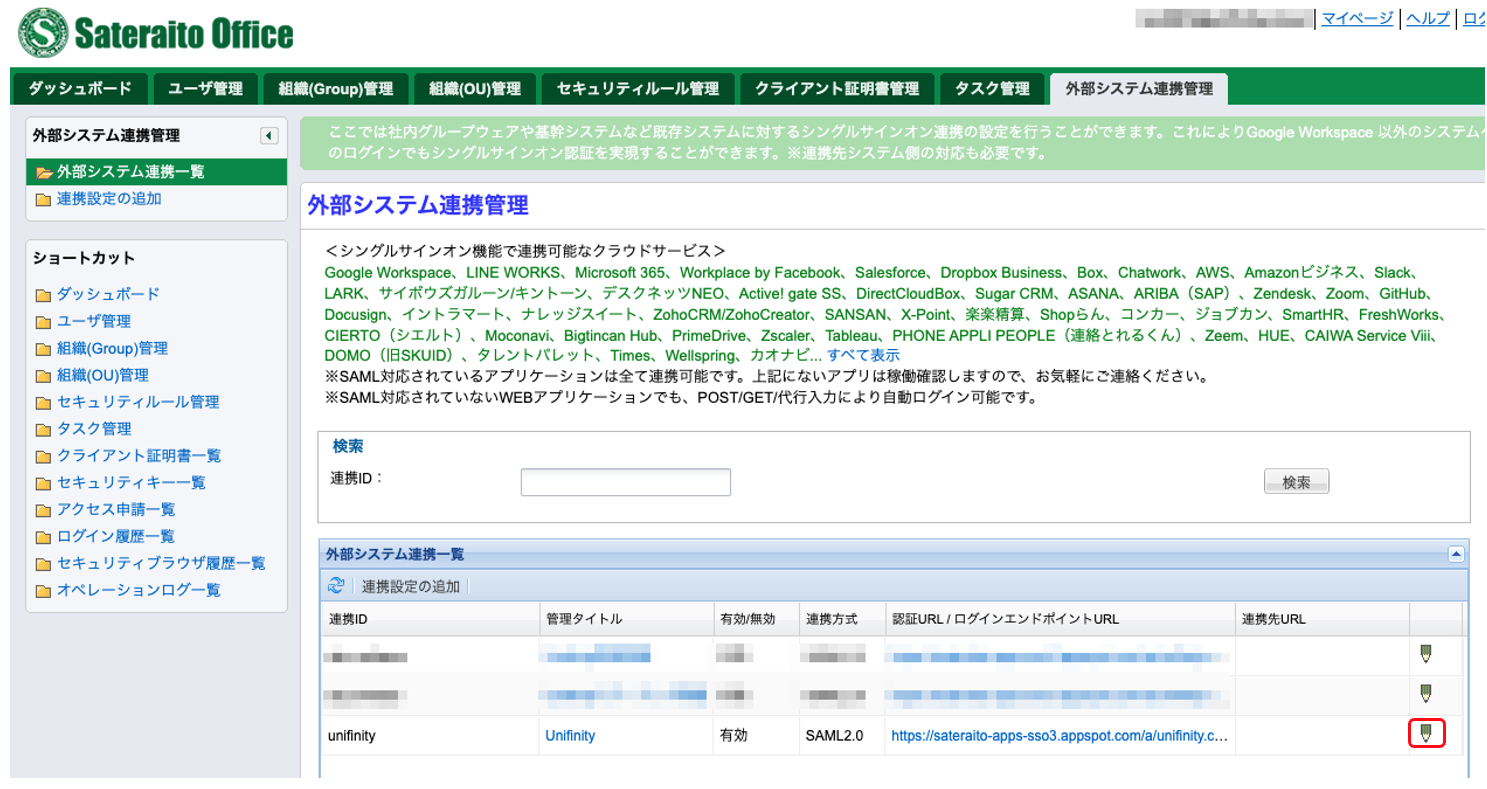

In the External System Linkage list, click the empit icon of the external system you have added.

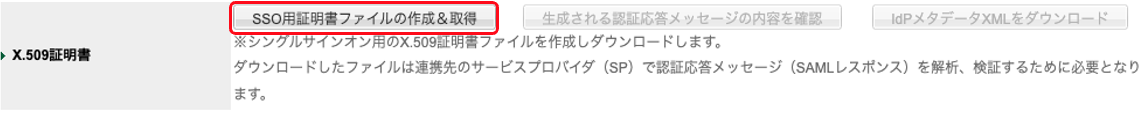

Click on "Create & Get Certificate File for SSO" for X.509 certificate, and then
Confirm the confirmation message and click "Yes. (Note that this single sign-on certificate file itself will not be used in subsequent operations.)

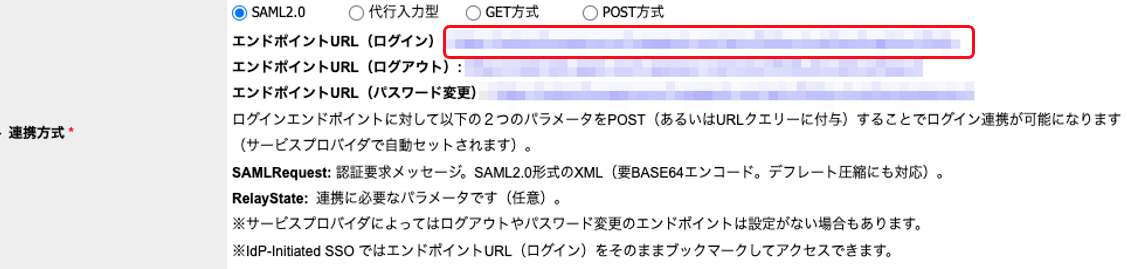

Specify the endpoint URL (login) for the federation method as the IdP Login URL on the UniBaaS single sign-on configuration screen.

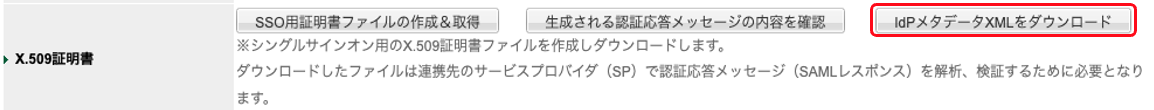

Click "Download IdP Metadata XML," open it with Notepad, select all of the files, copy them to the clipboard, and paste them into MetaData on the UniBaaS single sign-on setup screen.
